Steering Wheel Support for the LandCruiser 80 Series

Find the right kit for your 80 Series LandCruiser, plus the install documents and answers you'll need.

Shop Steering Wheel Kits

Get Started

Non-Airbag Kit (1990-1998) You get the hub adaptor and all the mounting hardware, and the included horn kit keeps your horn working. Shop the Kit Airbag Model Kit (1990-1998) It works with your factory airbag system, and we strongly recommend professional fitment. Shop the Kit Boss Kit for Base Models For base model LandCruisers without factory airbags, it bolts straight onto your column with a pre-soldered horn cable. Shop the Boss Kit Wireless Controls Module Adds steering wheel controls on the horn power circuit only, and the listed fitment includes the 80 Series (1990-1998). Shop the Module How to Remove Your Steering Wheel Your PVS wheel has three pins holding the pad on, one on the right side and two on the left, behind the small covers on each side. Read the Steps Install Guide: Non-Airbag Models Boss kit onto the column, horn cable plugged in, wireless module for the buttons. Read the Steps Install Guide: Airbag Models Horn feed powers the module, the 3-pin plug decides cruise. Check your detonator first. Read the Steps Steering Wheel Guides & Troubleshooting Covers pairing, clock spring care, torque checks and troubleshooting for every kit. Read the Guides

Install Documents

80 Series Boss Kit Install Guide PVS Headunit Steering Wheel Wiring Diagram 100/105 Series Wiring Diagram: Controls and Cruise (Same Clock Spring as the Airbag 80 Series) Alpine Steering Wheel Wiring Pioneer & Sony Steering Wheel Wiring Kenwood Steering Wheel Wiring

Service Request

Register Your Steering Wheel Put your wheel on the record against your order. You get a reference number straight away and your warranty document by email. Register Now Start a Support Request Attach photos and your order number, and you'll get a reference number straight away. Get Started Check an Existing Ticket Sign in with the email you contacted us from and you can read the whole ticket. Check Your Ticket Track Your Order You'll see every item on your order line by line, with tracking as soon as a parcel is sent. Track Your Order

Specs

Fitment

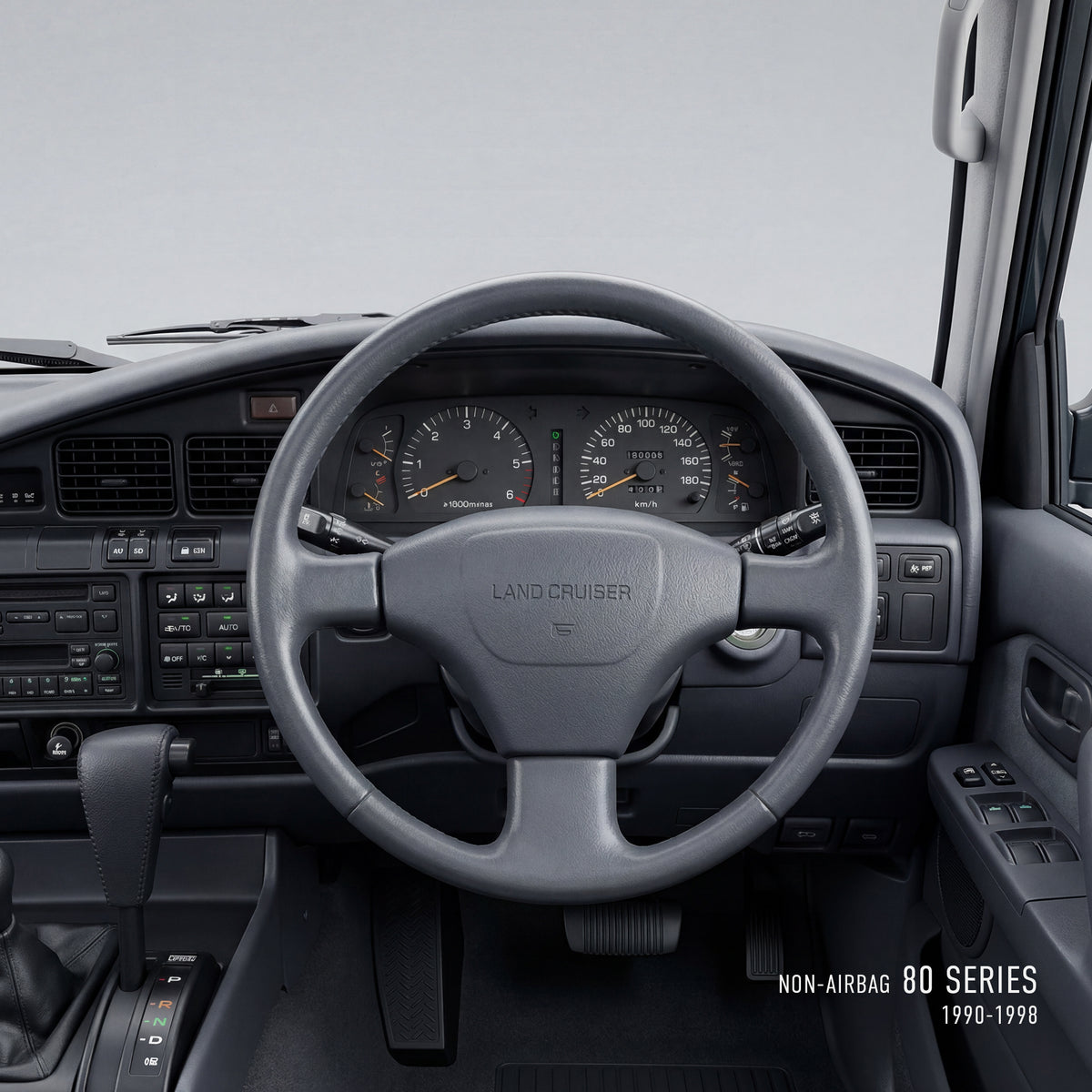

Non-Airbag Models
1990 to 1998, horn kit included
Airbag Models
1990 to 1998, professional fitment strongly recommended
Steering Wheel Controls
Wireless controls module included, matched to your headunit
Cruise Control
Airbag models with the 3-pin cruise plug need the retention module, wired in

Tutorial Videos

Airbag Model Install: Steering Controls and CruiseFilmed on the 100/105 Series, which shares the airbag 80 Series clock spring How to Remove Your Steering WheelFilmed on a 200 Series LandCruiser during the paddle shift kit install

FAQ

Cruise Control (Airbag Models)
Which 80 Series need the cruise retention module?

Airbag models with factory cruise. The airbag 80 Series has the same clock spring as the 100 and 105 Series, with a separate 3-pin plug for factory cruise. To keep cruise, that plug is wired into the 3 Wire Cruise Control Retention Module, sold separately and not plug and play. Without the module the plug stays unplugged: your horn and steering wheel controls still work, and only cruise is lost. The non-airbag 80 Series has no factory cruise, so there's nothing to keep. Send us a photo of your cruise stalk plug and we'll confirm before you buy.

Read the Full Guide ›

Which plug goes where at the clock spring?

On an airbag 80 Series the clock spring has no steering control plug. It carries the horn wire, plus the 3-pin cruise plug if your vehicle has factory cruise. The horn feed connects to the back of the new horn pad and also powers the wireless module transmitter behind the wheel. Nothing new runs through the clock spring, and the horn booster lead isn't used on it. The 100/105 wiring diagram shows every connection, and it's the same clock spring.

Read the Full Guide ›

Is there an install video for the airbag model?

Yes. The 100/105 install video covers the airbag 80 Series, because it shares the 100/105 clock spring and airbag system. It shows the wireless module and the cruise retention module going in.

Read the Full Guide ›

Will my airbag fit the new wheel?

The airbag 80 Series came with one of two airbag detonator sizes, 3 inch or 4 inch. Only the 3 inch seats in the new wheel. If yours is the 4 inch, a 3 inch from a newer model is a straight swap. Send us a photo of your airbag before you order and we'll confirm.

Read the Full Guide ›
